Panel Fan Nozzle Flanging Machine

CJ Industry >> Vertical Flanging Machine >> Panel Fan Nozzle Flanging Machine

Panel Exhaust Fan Flanging Machine

This flanging machine is specifically designed for the flanging and punching of panel flange fans.

Featuring advanced servo-driven adjustments, this machine ensures accurate and efficient forming with a stationary workpiece and a rotating flanging roll.

With the panel fan spinning machine, it is the best combination for producing flaned nozzles. Widely used in cooling tower, chiller, panel fan, plate fan, flange fan, filter fan etc. Experience superior performance and reliability in every operation.

Technical charateristics of machine:

  • Rotating Flanging Rolls
  • Stationary Workpiece
  • Motor with inverter.
  • Hydraulic ejector for opening or closing expansion tool.
  • Ribbing unit to give stiffness to ferrule.
  • Flanging unit.
  • Punching unit equipped with brushless motor for automatic positioning
  • Touch-screen for programming.
  • Safety guards, made in aluminium, fixed on three sides with sliding doors in lateral and posterior parts.

Gallery

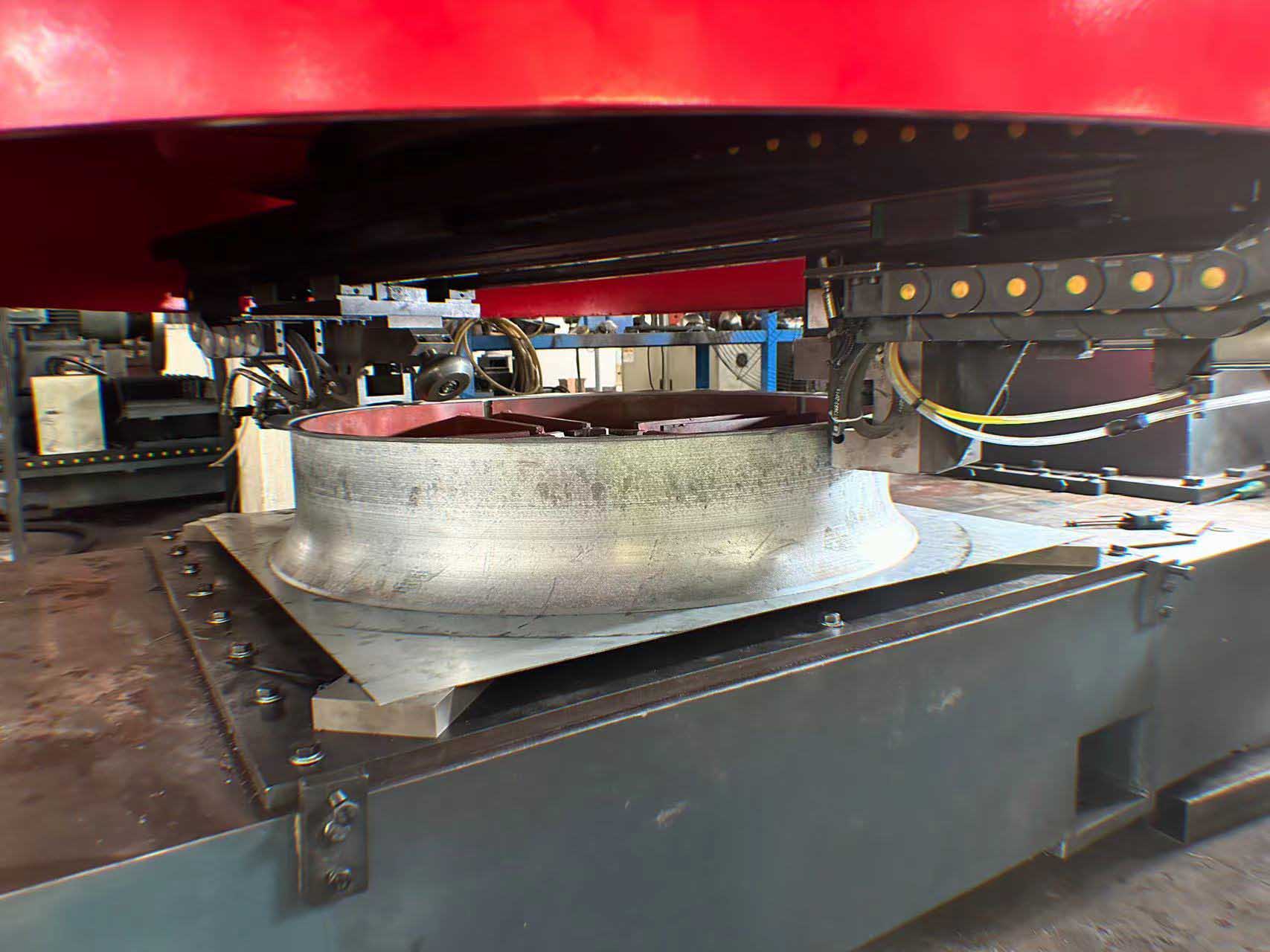

panel fan nozzles flanging machine

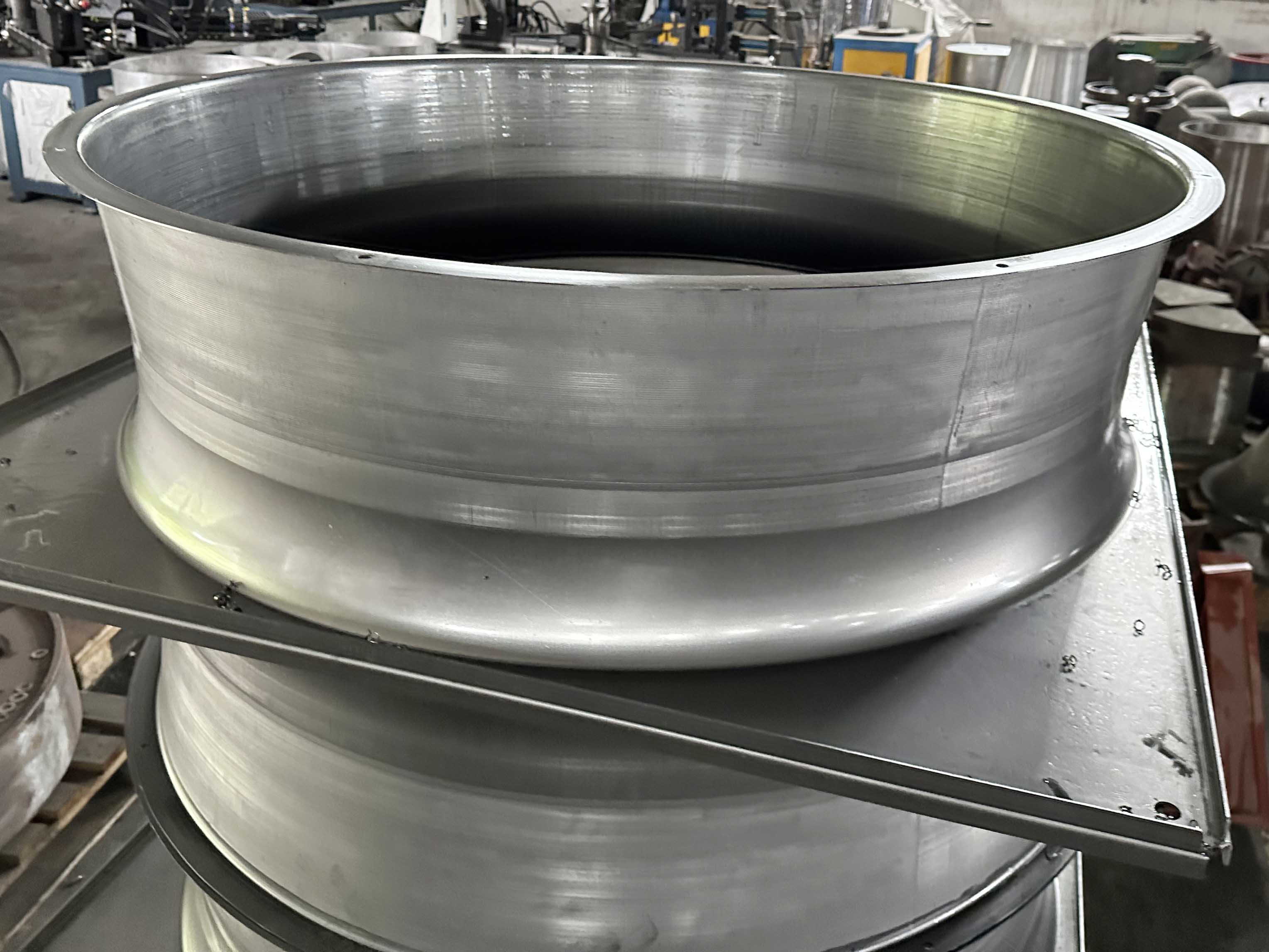

panel fan flanging machine

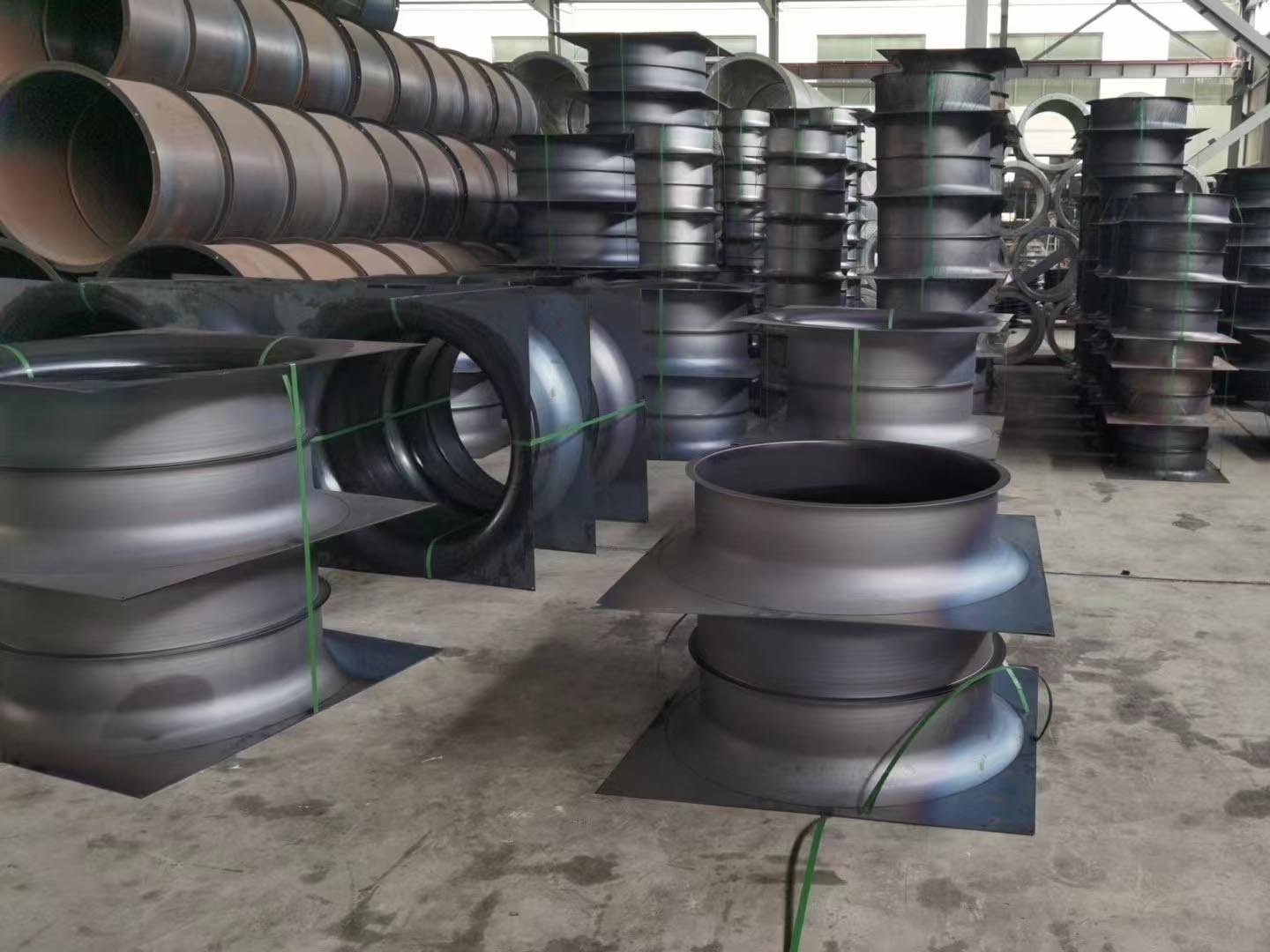

panel fan flange hole punching

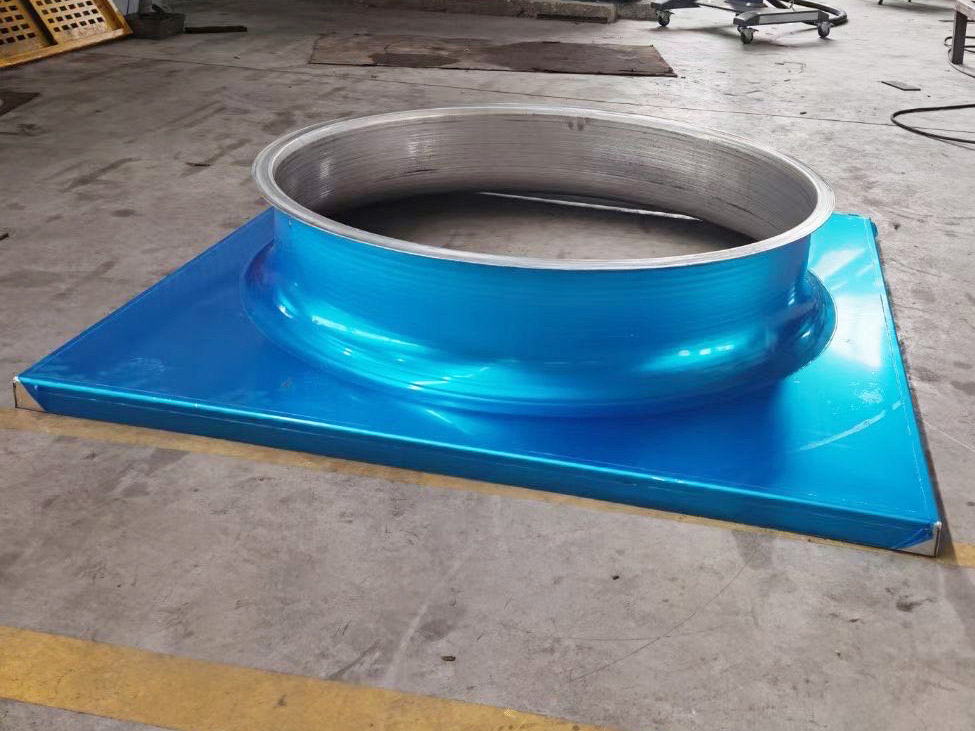

CNC flanging machine for flange fan

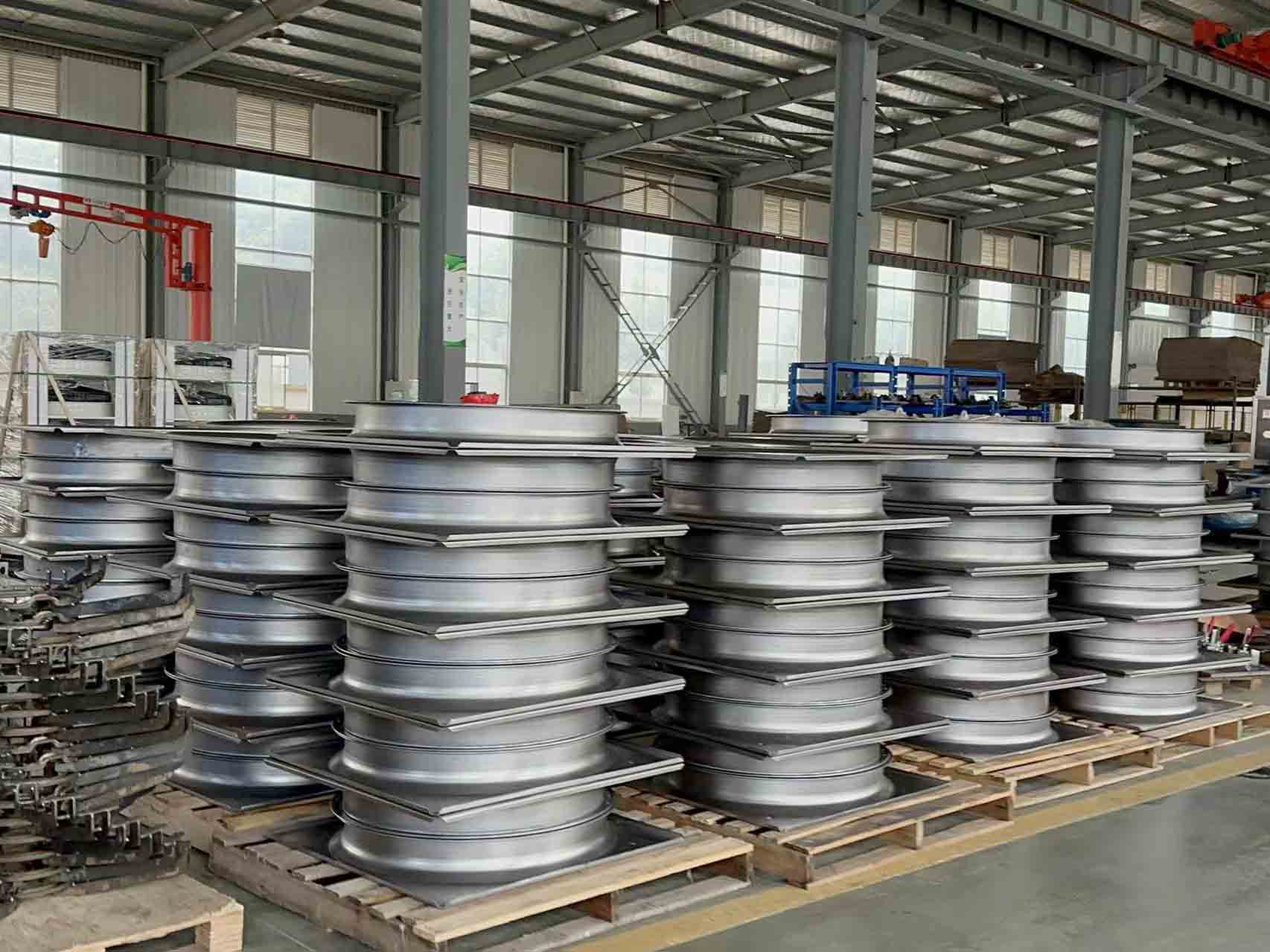

plate fan flanging machine

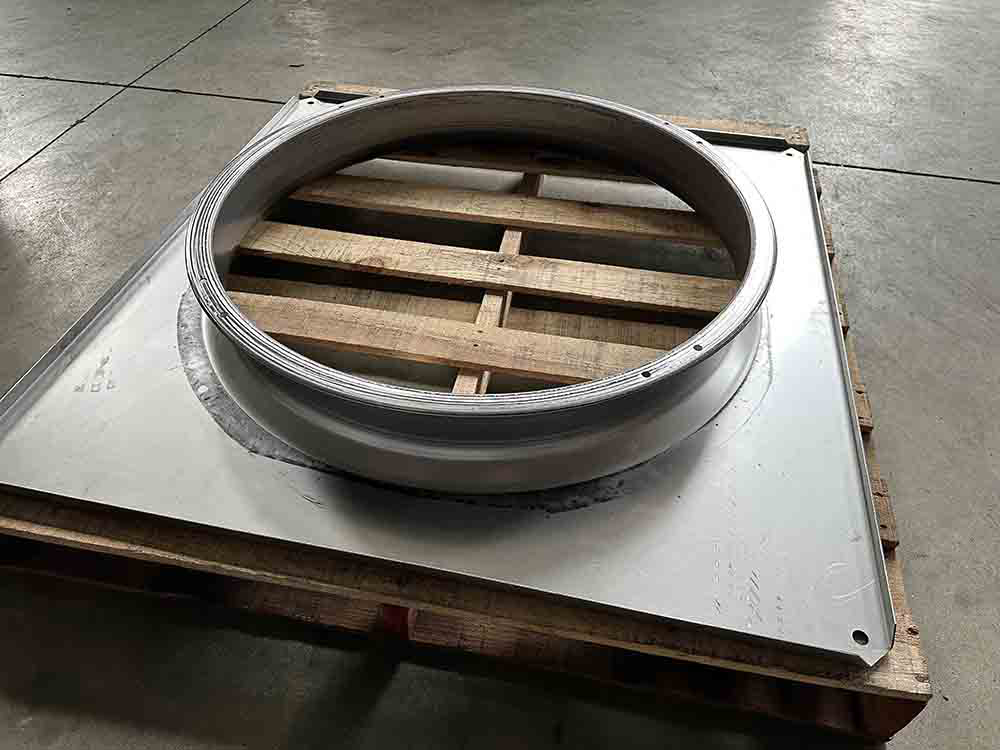

filter fan flanging machine
