Heavy Duty Flanging Machine

CJ Industry >> CNC Flanging Machine >> Heavy Duty Flanging Machine

Heavy Duty CNC Spinning Flanging Machine

It is a special spinning forming machine with high numerical control integration functions. It adopts horizontal numerical control spinning forming. It can spin the inside and outside of the ring for numerical control forming of the air inlets and outlets, axial fan casings, inlet cones, shrouds and front plates for centrifugal fans. At the same time, it can use two spinning wheels for flanging and punching of the flange of the straight barrel by using different clamps. The flanging shaft adopts hydraulic control torealize angle and speed control, which can carry out flanging and station conversion. The flanging and punching of the fan housing with the diameter of 500mm- 5000mm can be realized by changing the internal mold of different specifications. The number of punching parameters and the shape and size of flanging can be set in the software. In addition, the expansion shaft can be installed with hydraulic expansion disc, which is used for flat flanging, cone flanging and spinning.

Standard equipment:

  • 1. Siemens Control System
  • 2. Famous Brand Parts
  • 3. CNC Programming Software
  • 4. Flange Roller
  • 5. Hydraulic Station
  • 6. Operation Station
  • 7. Electrical Cabinet
  • 8. Operation Manual
  • 9. CE certified machine

Optional features:

  • 1. Auto Punching Assembly
  • 2. Flange Plasma Cutting Assembly
  • 3. Cars for Loading and Changing Ends
  • 4. Video Monitoring System
  • 5. Air Conditioner for Hydraulic Station

Gallery

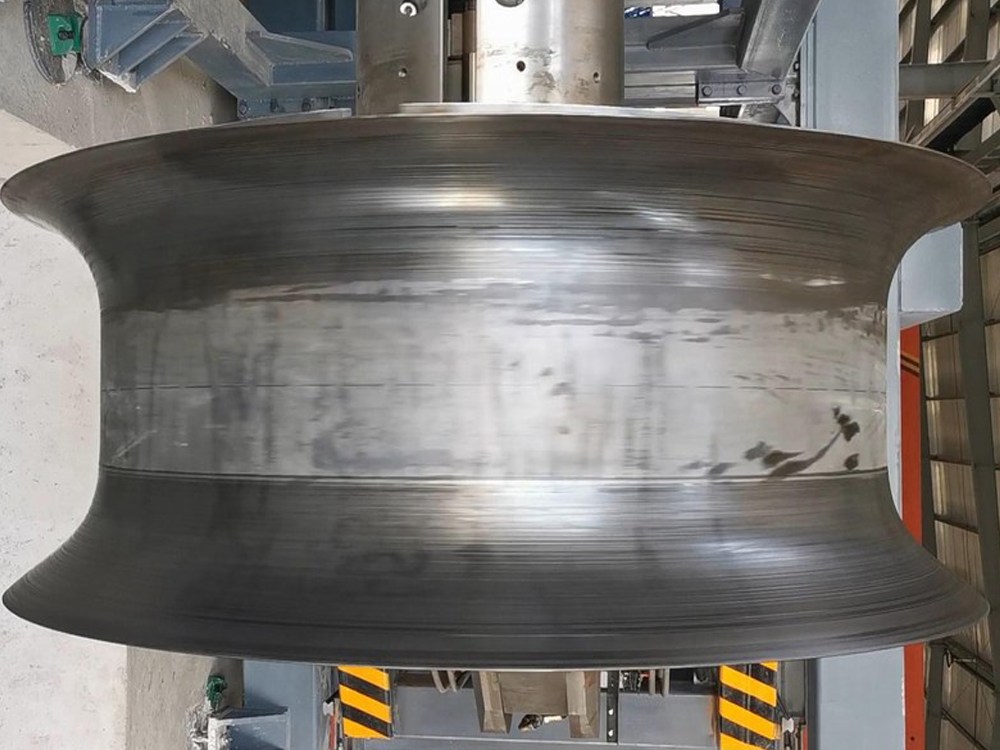

Heavy duty flanging machine
Heavy duty flanging machine

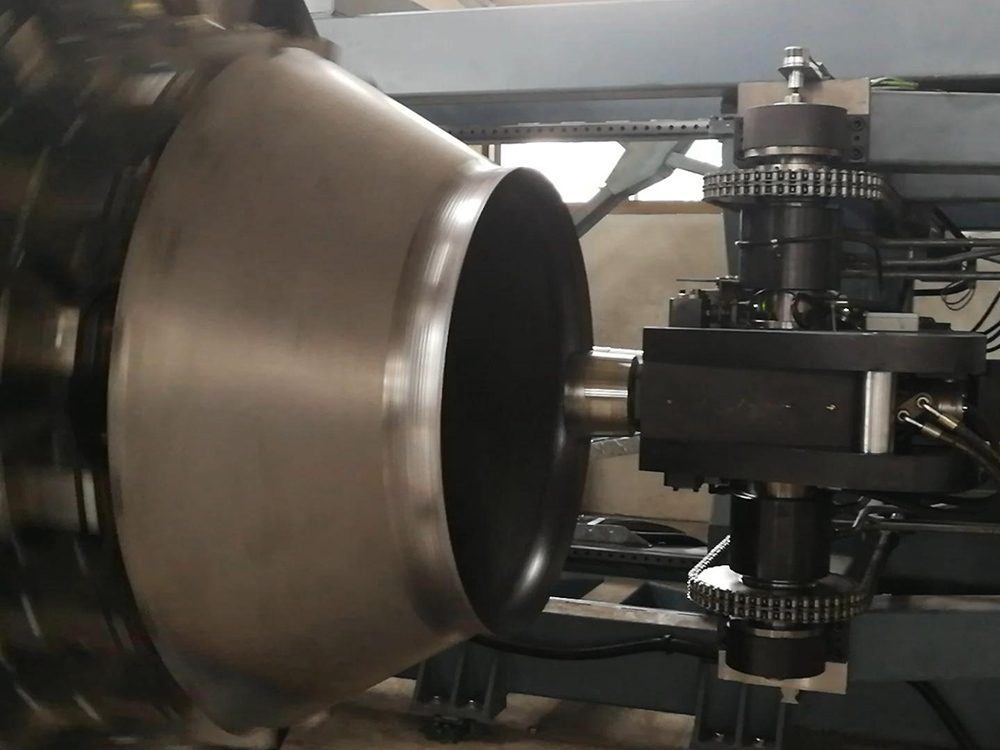

bellmouth flanging machine
Heavy duty flanging machine

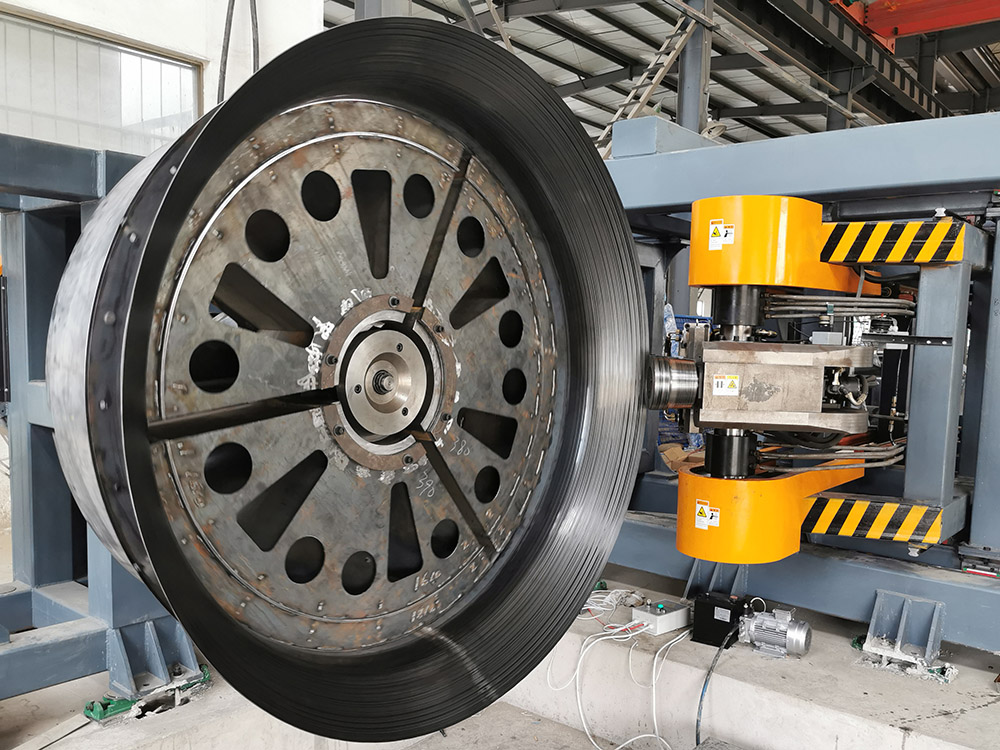

3m cones spin flanging

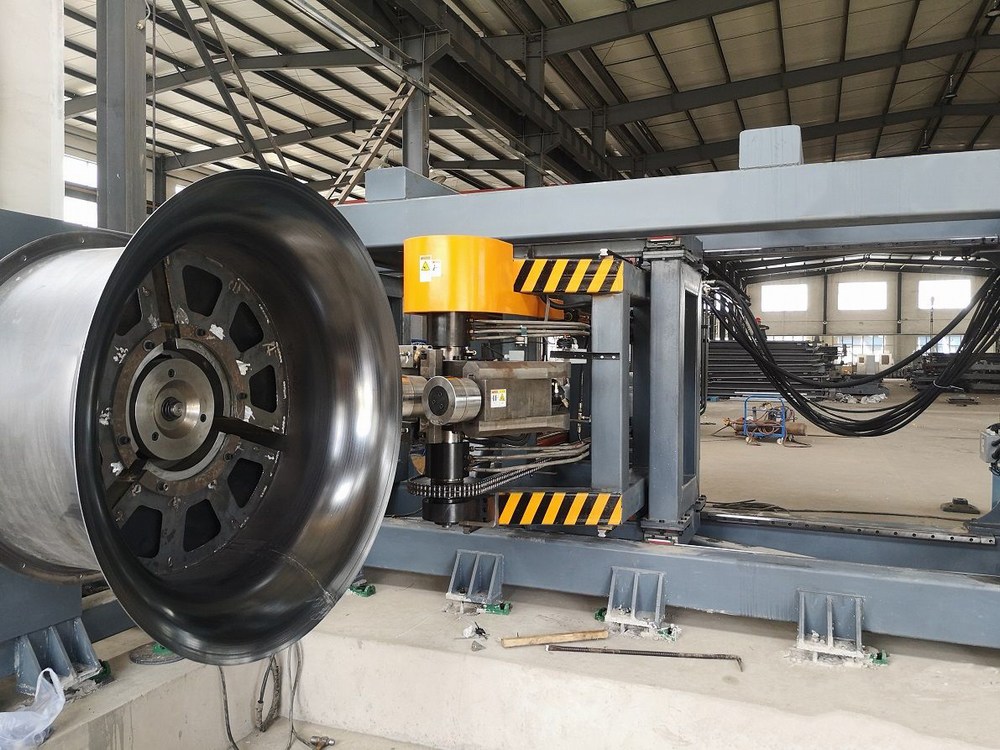

Heavy duty flanging machine

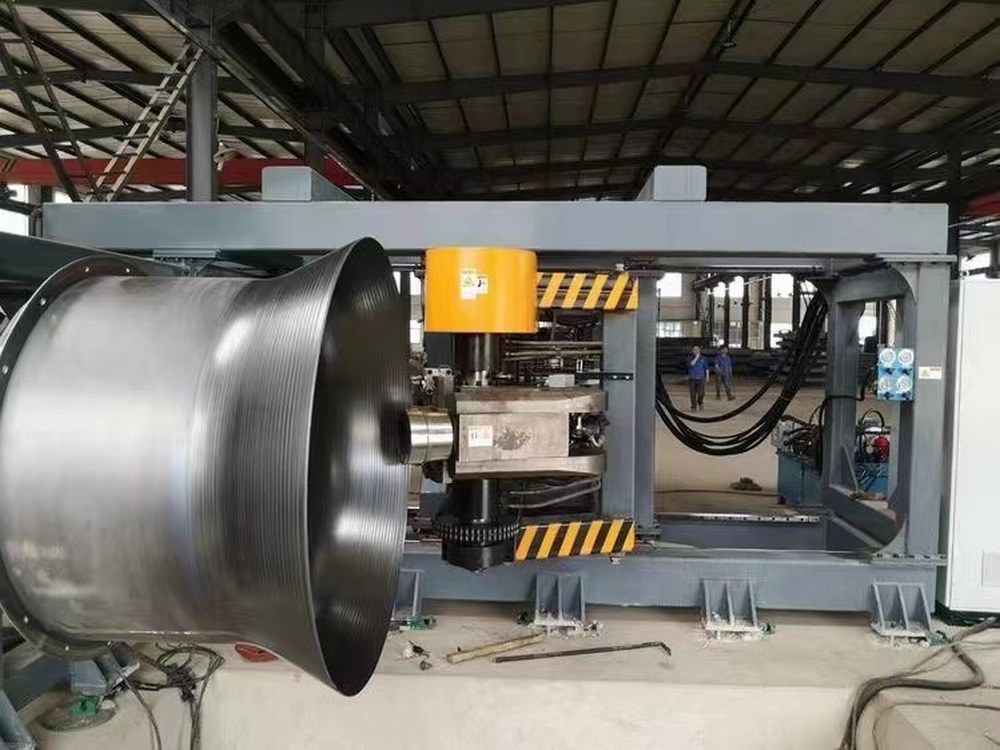

Heavy duty flanging machine

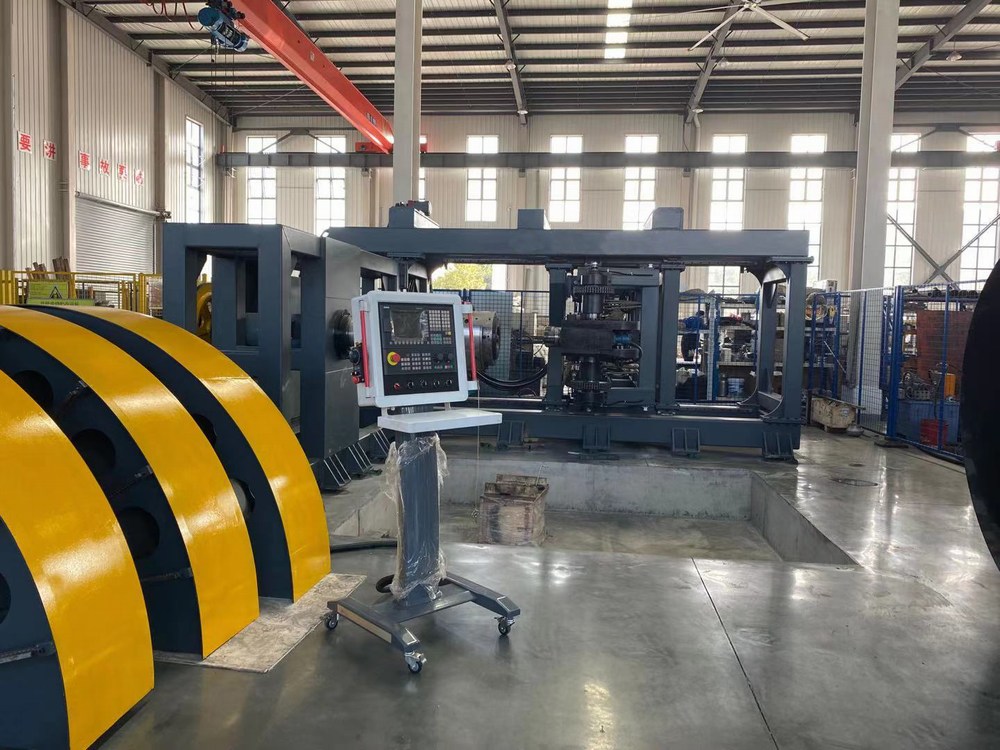

Heavy duty flanging machine

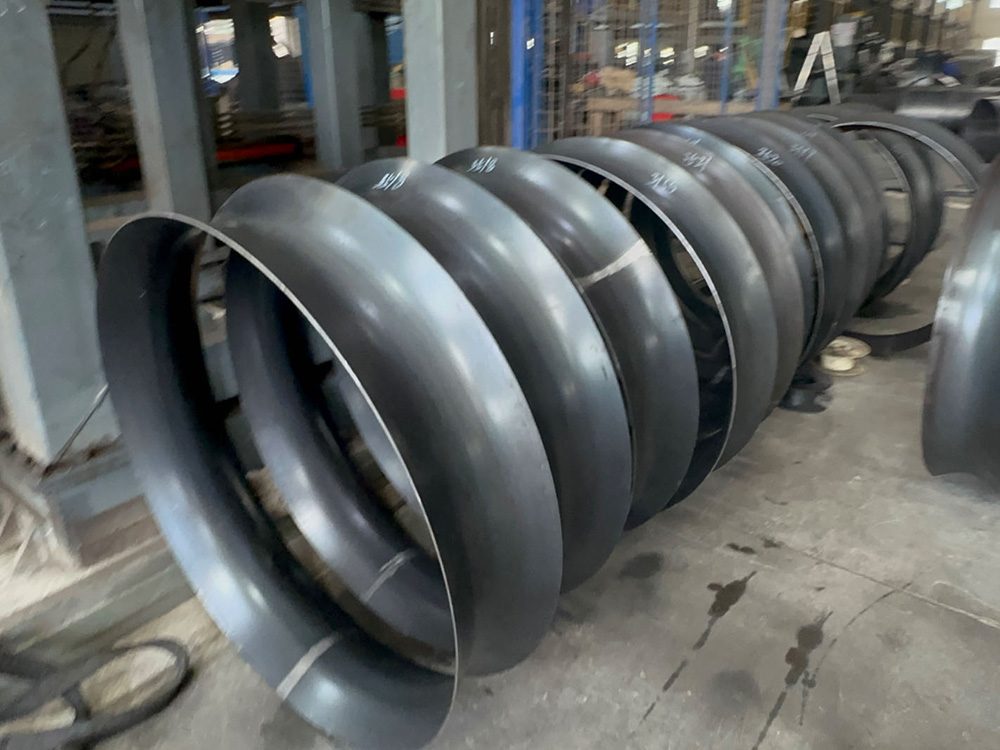

industrial fan

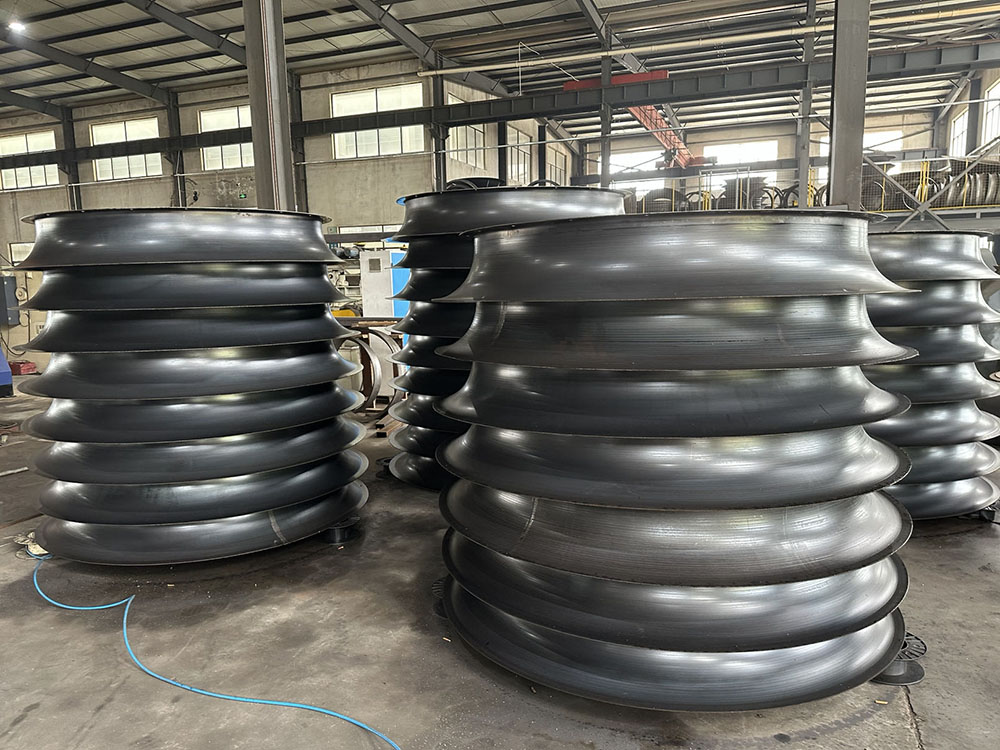

inlet funnel for centrifugal fan

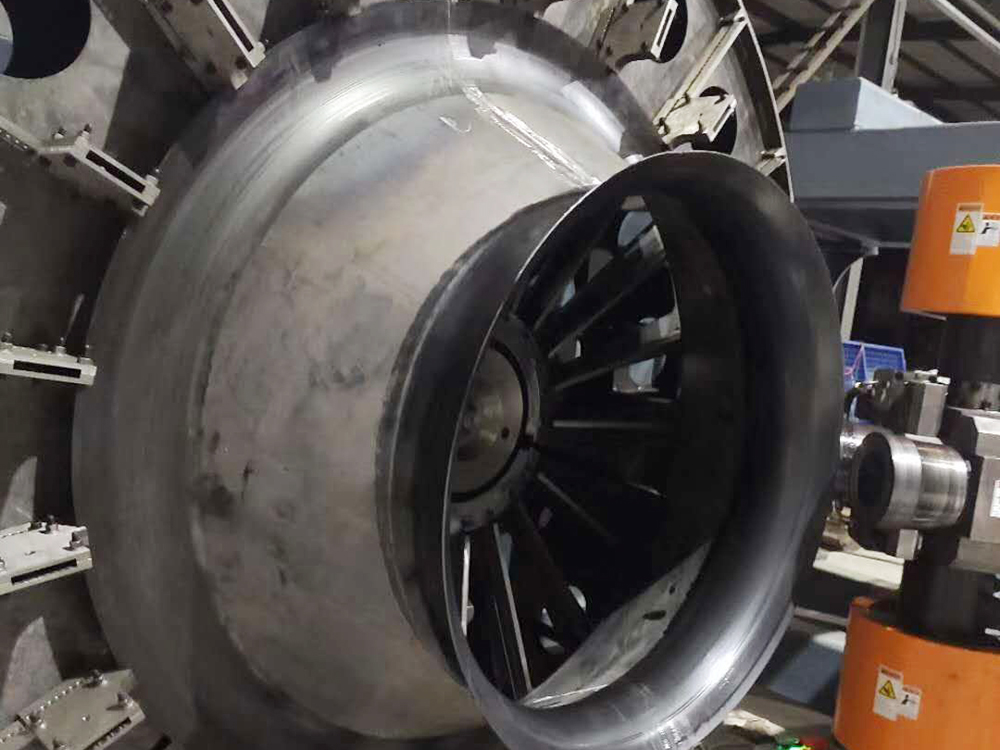

air inlet for centrifugal fan
inlet cones for centrifugal fan

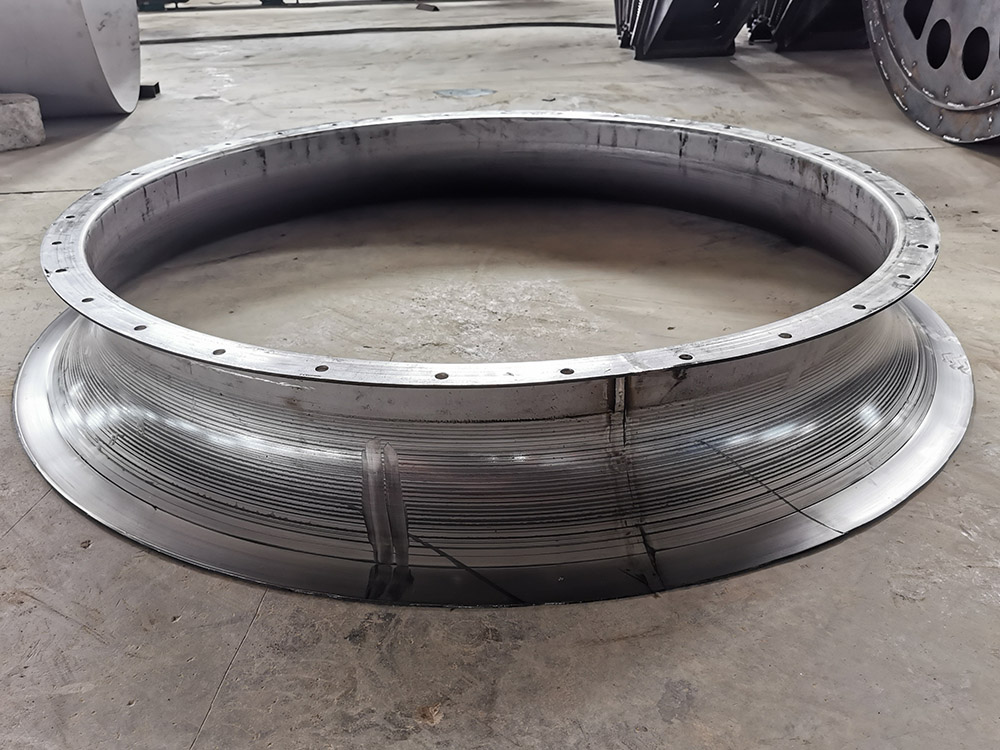

inlet funnel for centrifugal fans

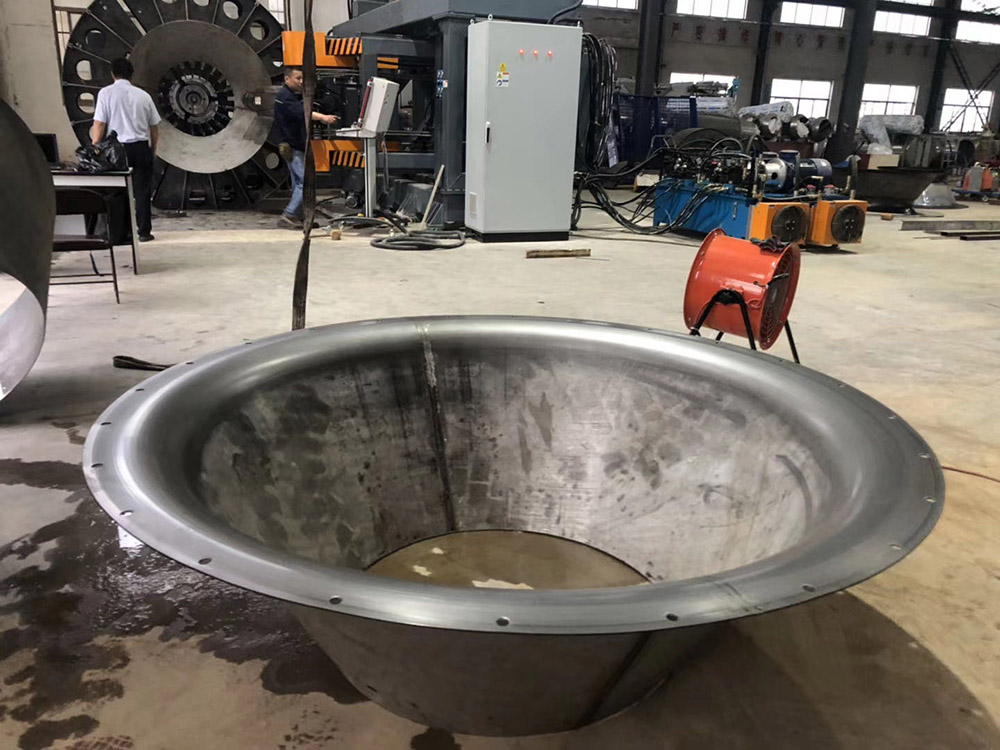

bellmouth flanging and hole punching

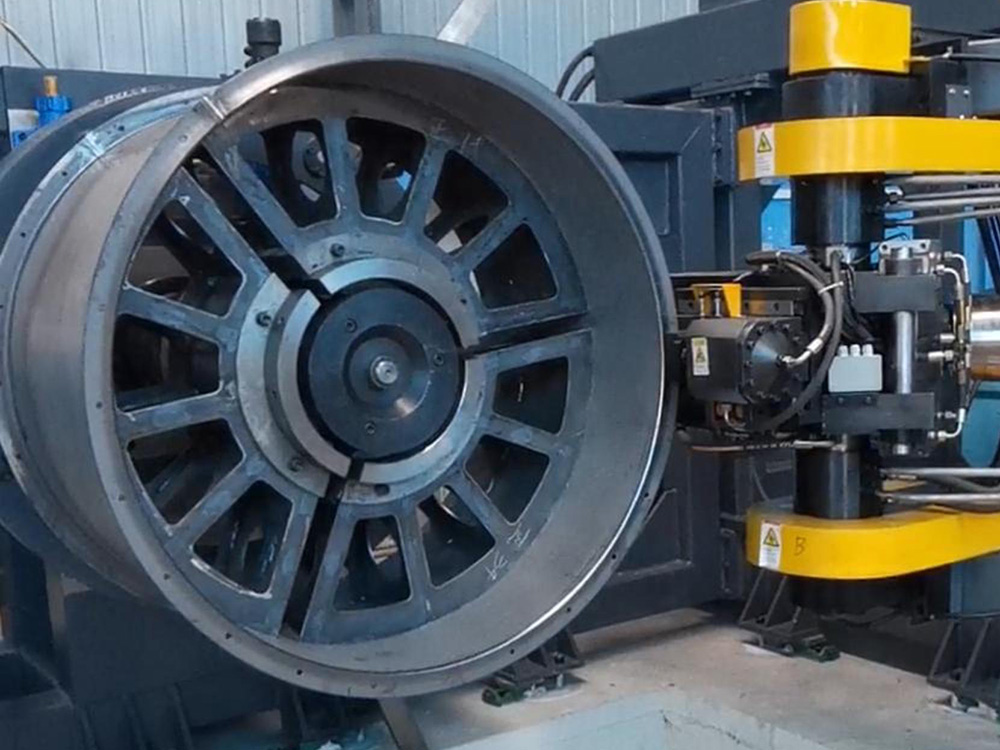

CNC axial fan flange flanging machine
